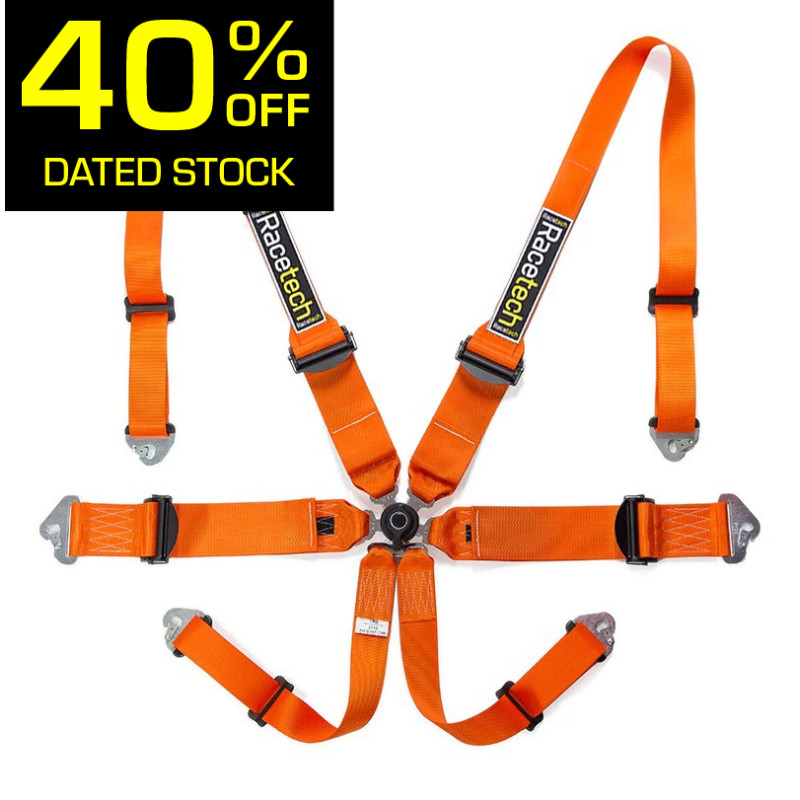

Magnum 6-point FHR Lightweight Harness
The top-of-the-line 6-point harness with 50mm (2") shoulder straps over the HANS/FHR device. This harness is FIA approved, but only when used correctly in conjunction with a HANS/FHR device. Features 75mm (3") lap straps and 50mm (2") crutch straps, which lock in via a 'T' bar to the lightweight cam-lock. Includes snap-hooks, eye-bolts and instructions for mounting in your vehicle. Snap-hooks can be removed to allow wrap-style fixing to your rollcage or harness bar. Please tick the box (above) to add backing/stress plates to your order.
Featuring lightweight, smooth-sliding alloy adjusters on both the shoulder and lap belts, this harness weighs just 3.0kg.
2022 stock, not valid for FIA-approved use after 2027.
|Common Applications||Professional circuit and rally where a HANS/FHR device is worn.|
|Homologation||FIA 8853/2016 (5 year life)|
|Fastener||Cam-lock (fixed to crutch straps)|
|Shoulder Strap||3" (75mm), down to 2" (50mm) over HANS/FHR device|
|Lap Strap||3" (75mm) wide|
|Crutch Strap||2" (50mm) wide|
|Shoulder Strap Length||67" (1700mm) fully extended|
|Lap Strap Length||830mm fully extended|
|Crutch Strap Length||820mm fully extended|
|Hardware||6x 7/16" UNF eye bolts|
