RT4119 Simulator Seat
- Brand: Racetech Manufacturing
- Product Code: RTRSIM419WT
- Availability: In Stock in SYD
-
$1,399.99
- Ex Tax: $1,272.72
Available Options

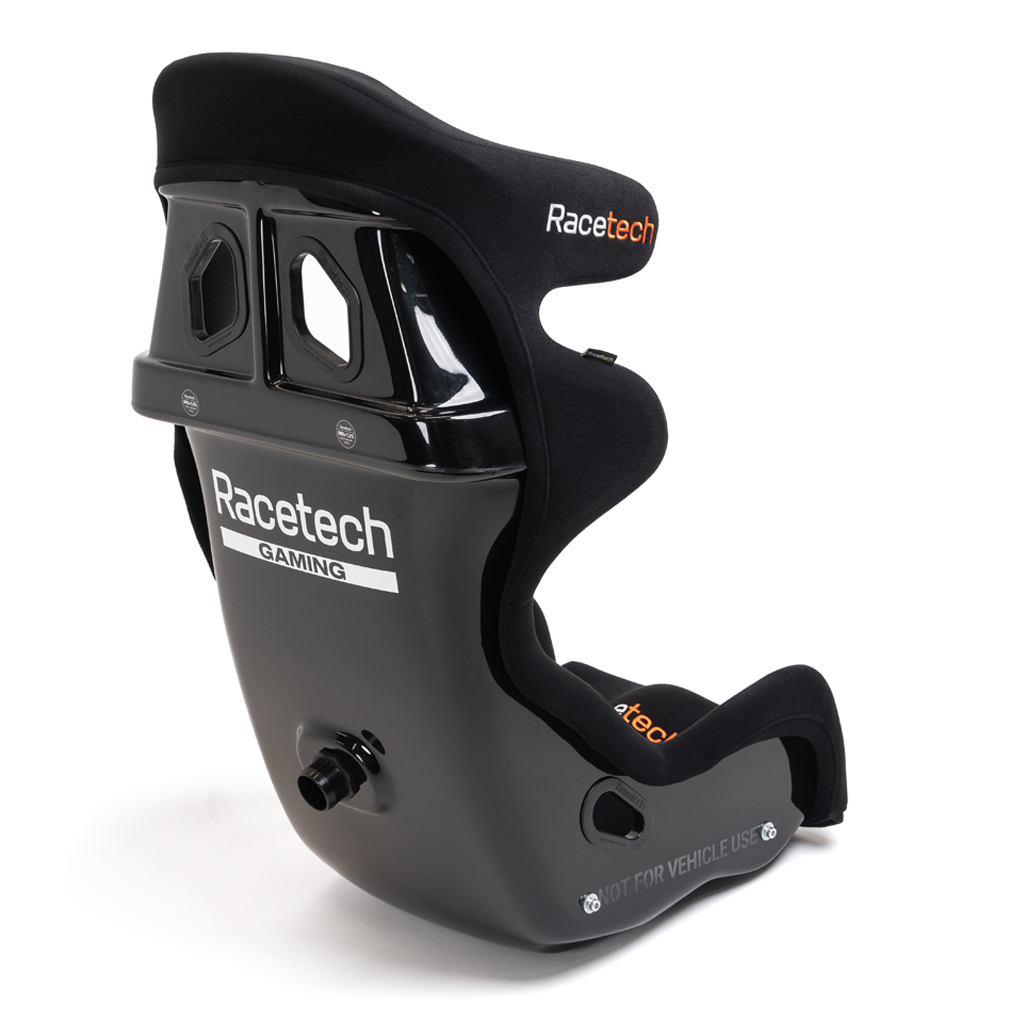

The Racetech RTRSIM419WT and RTRSIM419WTHR simulator seats use our proven motorsport seat geometry but with lighter shells specifically for simulator use. Both seats are our Wide and Tall sizes, and you can choose the head restraint (HR) option for ultimate immersion to closely replicate the feeling of your real race car. The HR model also includes the air duct spigot allowing you to connect a 2" hose to the seat for air cooling! If you require the air duct spigot for the non-HR model, please check the box above.
These 119-style seats are built for simulator use only and cannot be used in a vehicle.
Dimensions and Weights:
Model | Material | FIA | A | B | C | D | E | F | G | M | Shell Weight | Total Weight |
---|---|---|---|---|---|---|---|---|---|---|---|---|
RTRSIM419WT | Fibreglass | No | 63 | 64 | 41 | 50 | 47 | 93 | 68 | 44 | 5.9 | 7.9 |
RTRSIM419WTHR | Fibreglass | No | 68 | 64 | 41 | 50 | 47 | 98 | 68 | 44 | 6.4 | 8.4 |
dimensions in cm | weights in kg |
Application | |
Common Applications | Simulator (Not for vehicle use!) |
Stock Colour / Material | |
Gelcoat | Gloss black |
Seat Cover | Black fire-retardant fabric |
Wear Patches | Black perforated leather |
Technical | |
Homologation | N/A |
Shell Construction | Fibreglass Composite (GRP) |
Shell Weight | From 5.9kg |
Side Mount Hole Centres | 295mm |
Back Mount Hole Centres | 250mm |
Bolt Torque (Zinc) | 30Nm / 22 ft lb |
Design | |
Head Restraint | Yes - on WTHR model |
HANS Compatible | Yes |
Harness Compatibility | Up to 6-point harness |
Large Harness Guides | Yes |
Air Ducting | WTHR - Yes WT - Optional extra |
Back-mount Compatible | Yes |
