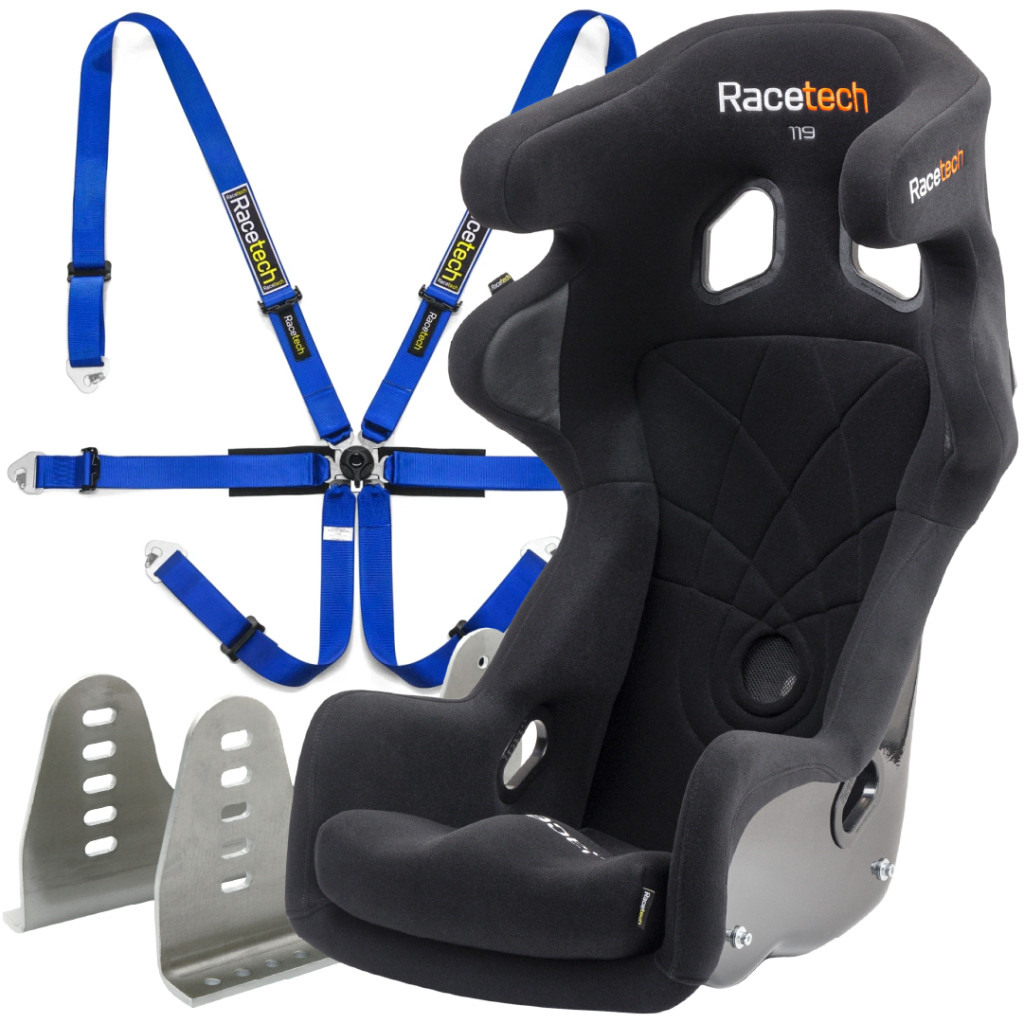

RT4119HRW Racing Seat
-1024x1024.jpg "Back cushion with ducting vent")
-1024x1024.jpg "RTB1009M side mount brackets")
- Brand: Racetech Manufacturing
- Product Code: RT4119HRW-111
- Availability: In Stock in SYD
- $3,149.99
-
$2,519.99
- Ex Tax: $2,290.90
Available Options
| 119 Back Mount Instructions | Download |
Building upon the successful 129 Series seats, Racetech offers the same ergonomic form and incredible feature set but in a lighter and more affordable package. This fibreglass race seat is used by many professional teams at both national and international level and in a range of motorsport disciplines including circuit, rally, drifting and drag racing. There are four sizes available (standard, wide, tall and wide-tall). Customise your seat sizing further with low-base cushions or add side cushions for support in the thigh area. These seats are extremely comfortable so are well suited to Endurance racing, especially when utilising the innovative air ducting. The 119 Series seats are compliant with FIA 8855-1999 standards *.
* To comply with FIA 8855-1999, the 119 Series seats (except the RT4119HRW) must be back-mounted to the rollcage at shoulder level. Back-mounting can be achieved using parts RTB3115B or RTB2115B and RTB2005C, see instructions here. Back-mounting improves seat strength and stability during an impact, increases driver 'feel' of the chassis, and reduces driver fatigue. See the explanation video here.
Dimensions and Weights:
| Application | |
| Common Applications | National to international-level circuit and rally |
| Stock Colour / Material | |
| Gelcoat | Gloss black |
| Seat Cover | Black fire-retardant fabric |
| Wear Patches | Black perforated leather |
| Technical | |
| Homologation | FIA 8855-1999 Approved |
| Shell Construction | Fibreglass Composite |
| Shell Weight | From 7.6kg |
| Side Mount Hole Centres | 295mm |
| Back Mount Hole Centres | 250mm |
| Bolt Torque (Zinc) | 30Nm / 22 ft lb |
| Design | |
| Sizes | HRW - Standard THR - Tall WHR - Wide WTHR - Wide & Tall |
| Head Restraint | Integrated head restraint |
| HANS Compatible | Yes |
| Harness Compatibility | Up to 6-point harness |
| Large Harness Guides | Yes |
| Air Ducting | Yes - vented to the driver's lower back |
| Back-mount Compatible | Yes |
